Electric Air Conditioning 12V Beetle Beetle 1300,1302

Kit Composition:

01 - Electric Air Conditioning Compressor 12v or 24v Universal Adaptation
Compressor and Module for those who do not want to install a conventional compressor in their vehicle, ideal for new installations using an evaporator box with an average power of 15,000 to 20,000 btus. You don't need 2 batteries in the vehicle, just a 60 or 70 amp alternator.

Brand Name: Euro
Material type: aluminum alloy
Item Type: Air Conditioning Installation
Item weight: 8.5kg
Item width: 12 cm
Model Name: Euro Electric
New Year
External Test Certification: CC
Item height: 12 cm
Item length: 20cm
Rated speed: 12V: 1800rpm, 24V: 3000rpm
Compressor Style: Semi-enclosed Horizontal Scroll Compressor
Based on standard: GB/T 22068-2008 JB/T 12845-2016 GB/T 4706.17-2004

01 - Polaris Evaporator Box for Beetle
01 - Condenser + 2 Electric fans (Exclusive for the Beetle)
01 - Filter Dryer
01 - Pressure switch
08 - Connections
08 - Clips/Mugs
08 - Sealing rings, Oring

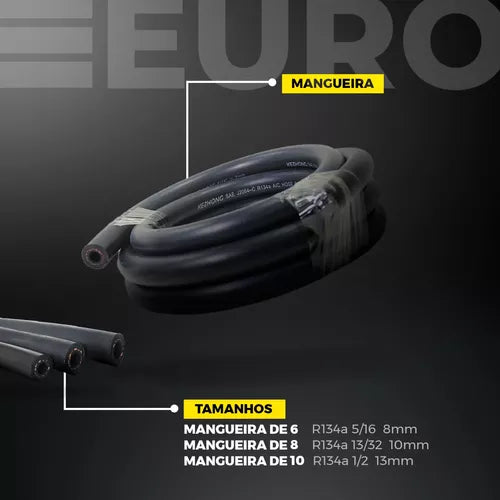

03 - Mts. Hose measurement 06 mm.
03 - Mts. Hose measuring 08 mm.
03 - Mts. Hose measuring 10 mm.
01 - PAG 150 Supercool Oil

TECHNICAL SHEET

Name: Beetle Evaporator Box

Code: 50012

SKU: 20


Origin: Brazil

Material: Plastic

Painting: N/A

Color: Black

Voltage: 13V

Current: 8.9A

Flow: 547 m3/h

Power: 115W

Approx Capacity: 15,000 Btus

Dimensions: L: 100 cm; H:12 cm; L: 40cm

Net Weight: 5.5 kg

Packaging Dimensions: L: 105 cm; A: 25cm; L 50 cm

Gross Weight: 13 kg

Features:

• Original pattern;

• Vintage Aesthetics;

• High quality finish;

• Easy installation and maintenance

Connections: Expansion Valve: 1 Liquid Male; Evaporator: 1 Male Suction

Expansion Valve: Universal 1 Capillary Type

Evaporator: Aluminum Coil Type; Measurements: L: 32 x H 10 cm x W: 8 cm

Fan Motor: IMOBRÁS 101122312

Control Panel: Plastic Buttons; Chrome Finish; 3 Position Speed ​​Selector; Adjustable Thermostat

Diffusers: 4; Chrome Finish

Fixing Brackets: 5 Front and 2 Central

Application: Beetle
