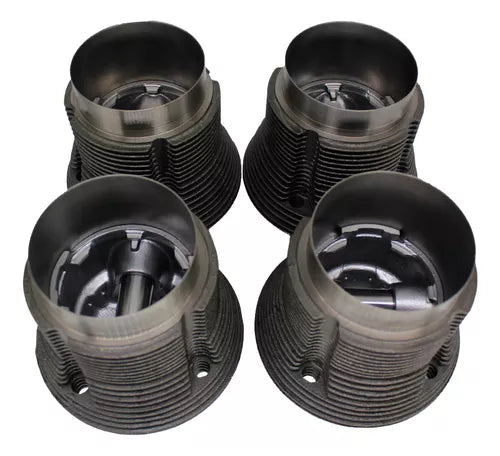

Forged Beetle 1800 Engine Kit 90.5 X 69mm Mahle Piston Liner ORIGINAL AIR COOLED

Description PISTON RINGS AND SHIRT KIT FOR VW 1800CC ENGINES WITH 69MM CRANKSHAFT WITHOUT STROKE NEW ORIGINAL MAHLE PRODUCT WITH TAX INVOICE MACHINING OF THE BLOCK AND HEADS REQUIRED FOR INSTALLATION FEATURES: TOTAL SHIRT LENGTH: L= 130.00 SHIRT FLANGE DIAMETER: C=98.00 SHIRT OUTER DIAMETER: A=96.00 INTERNAL DIAMETER OF THE SHIRT: B=90.50 CHANNEL HEIGHT: 1.50 / 2.00 / 4.00 CYLINDER DIAMETER: 90.50 CHANNEL THICKNESS: 3.80 / 3.80 / 3.99 MEASUREMENT: STANDER RING PROFILE: CP , 7 , C9 PISTON COMPRESSION HEIGHT: 39.60 CHANNEL HEIGHT: 1.50 / 2.00 / 4.00 PISTON GROSS CODE: 90P34 TOTAL PISTON PIN LENGTH: 75.00 TOTAL PISTON LENGTH: 72MM PISTON STROKE: 69.00 PISTON PIN OUTER DIAMETER: 22.00 PISTON MOUNTING CLEARANCE: 0.070 INCLUDED ITEMS: 04 PISTONS WITH RINGS 04 SHIRTS 04 PINS 08 LOCKS APPLICATION: FUSCA BOXER ENGINES (ALL) PACKAGE CONTENT: 01 KIT WITH PISTONS, RINGS AND SHIRTS MAHLE K-9001 STD PRODUCT WARRANTY - The exchange or withdrawal of this item can be made within 7 calendar days of receipt of the product. - 180 DAYS WARRANTY ATTENTION - The COMPANY is not responsible for misuse or improper installation of the product, we always recommend that installation be carried out by a specialized professional. - Images for illustrative purposes only
