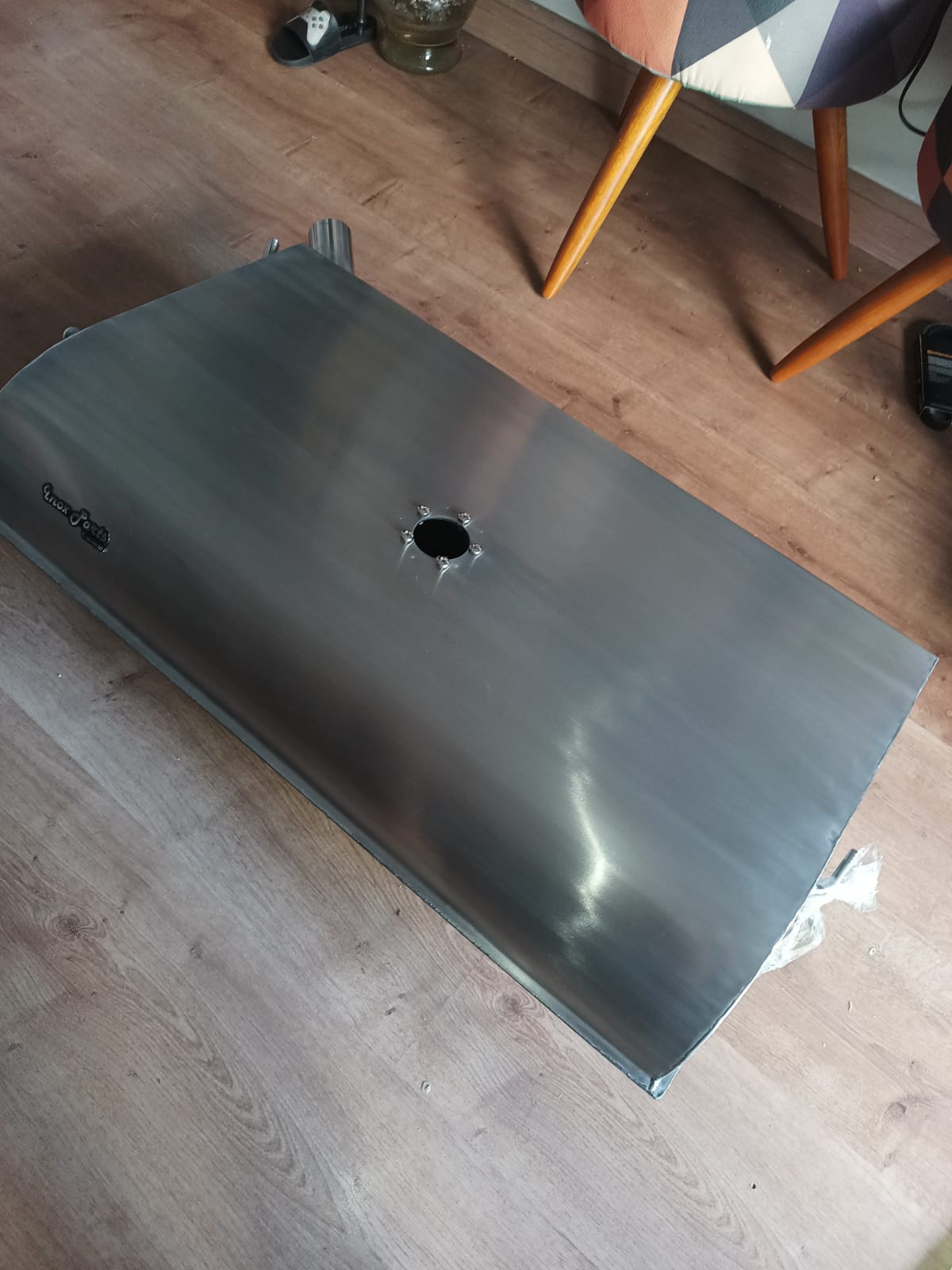

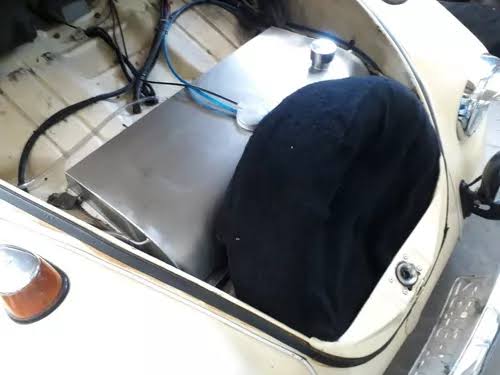

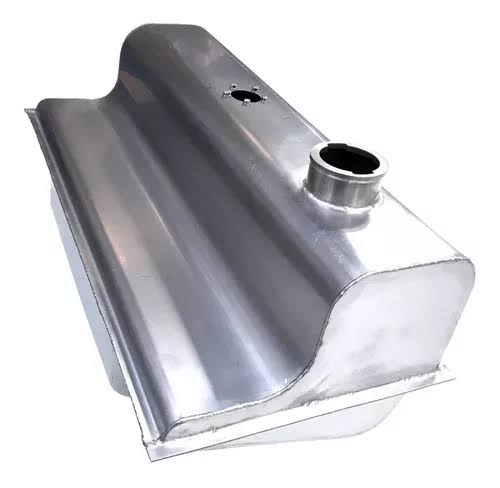

STAINLESS STEEL TANK BEETLE AIR COOLED 45 LITROS

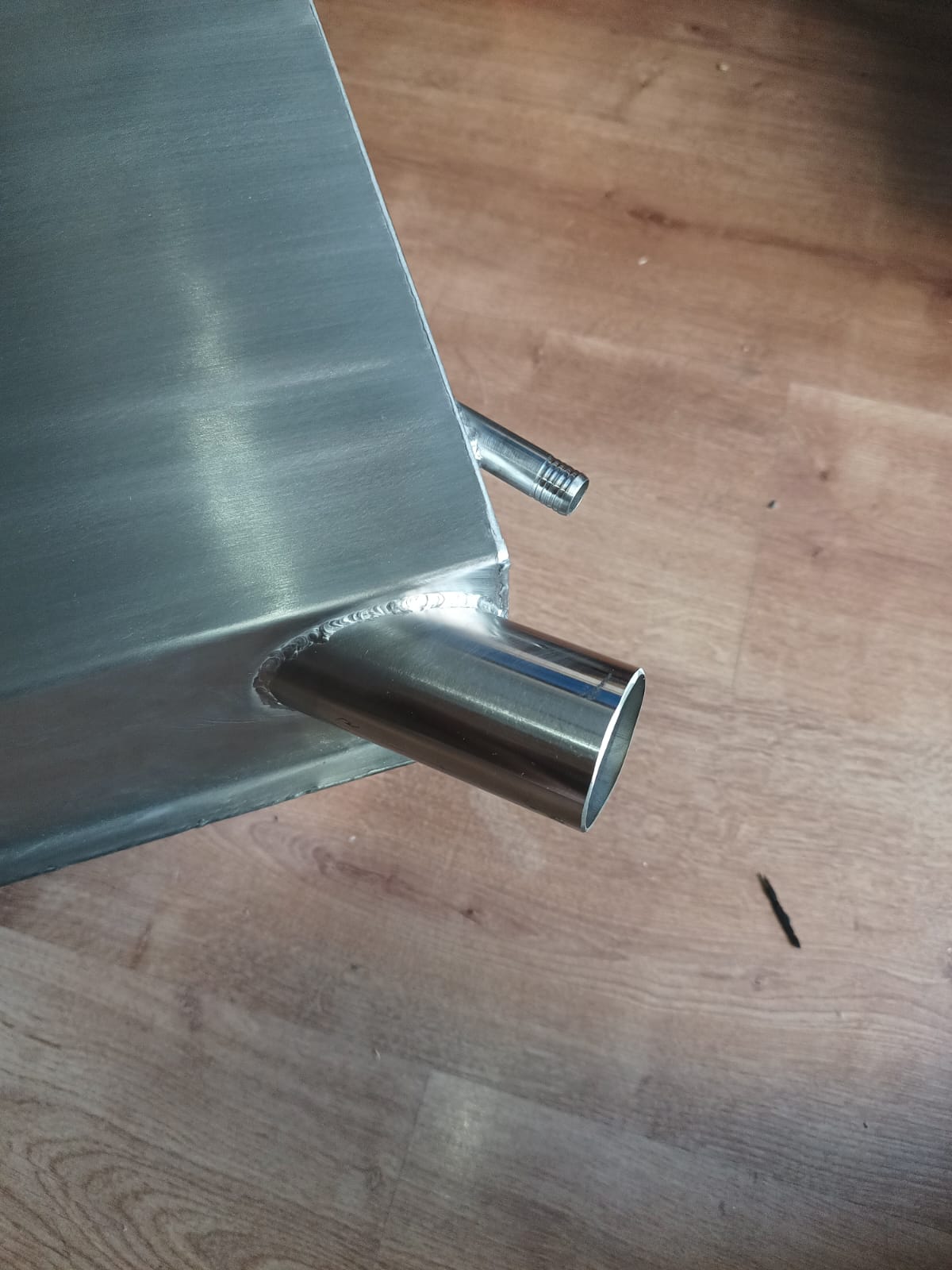

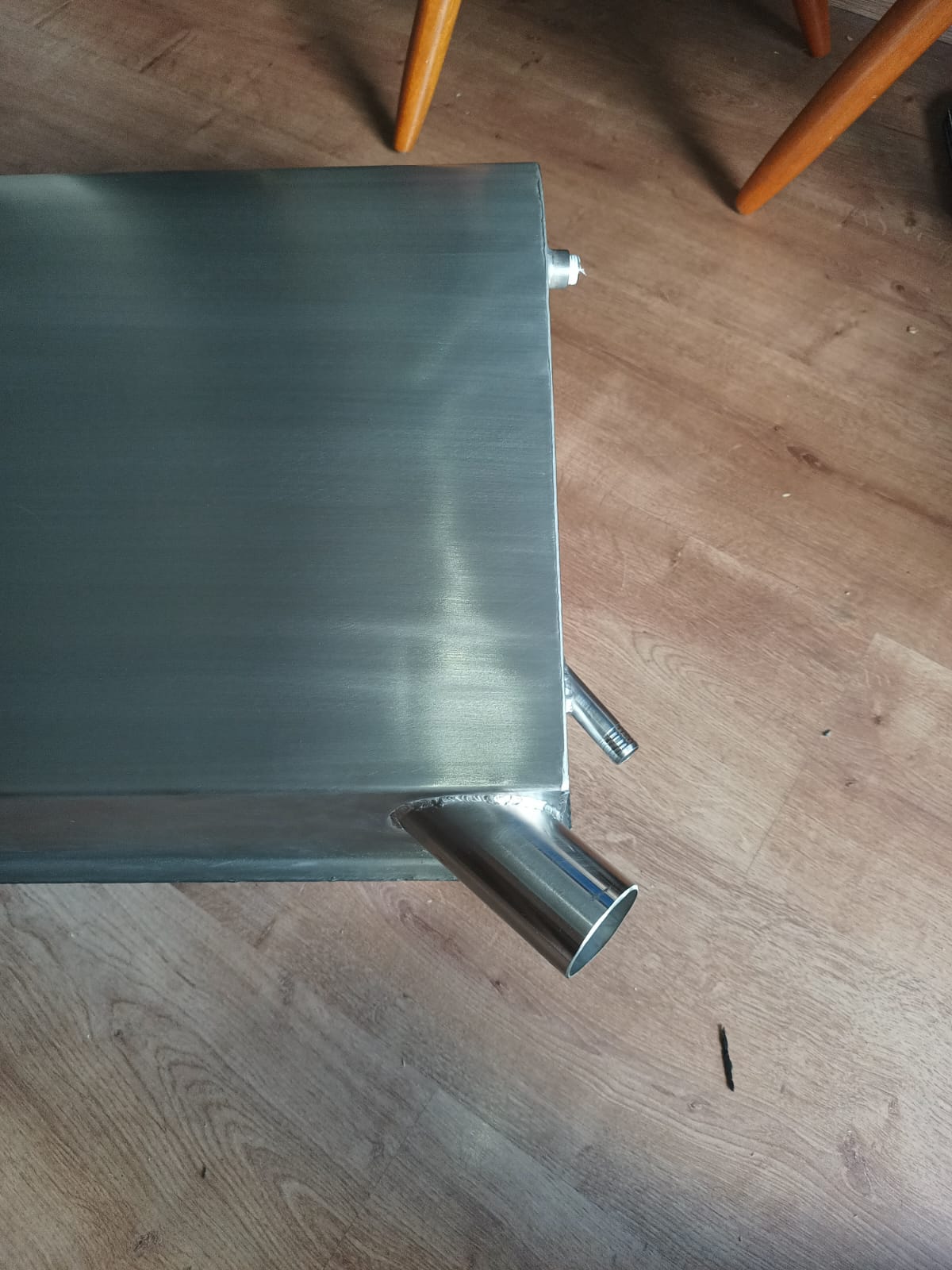

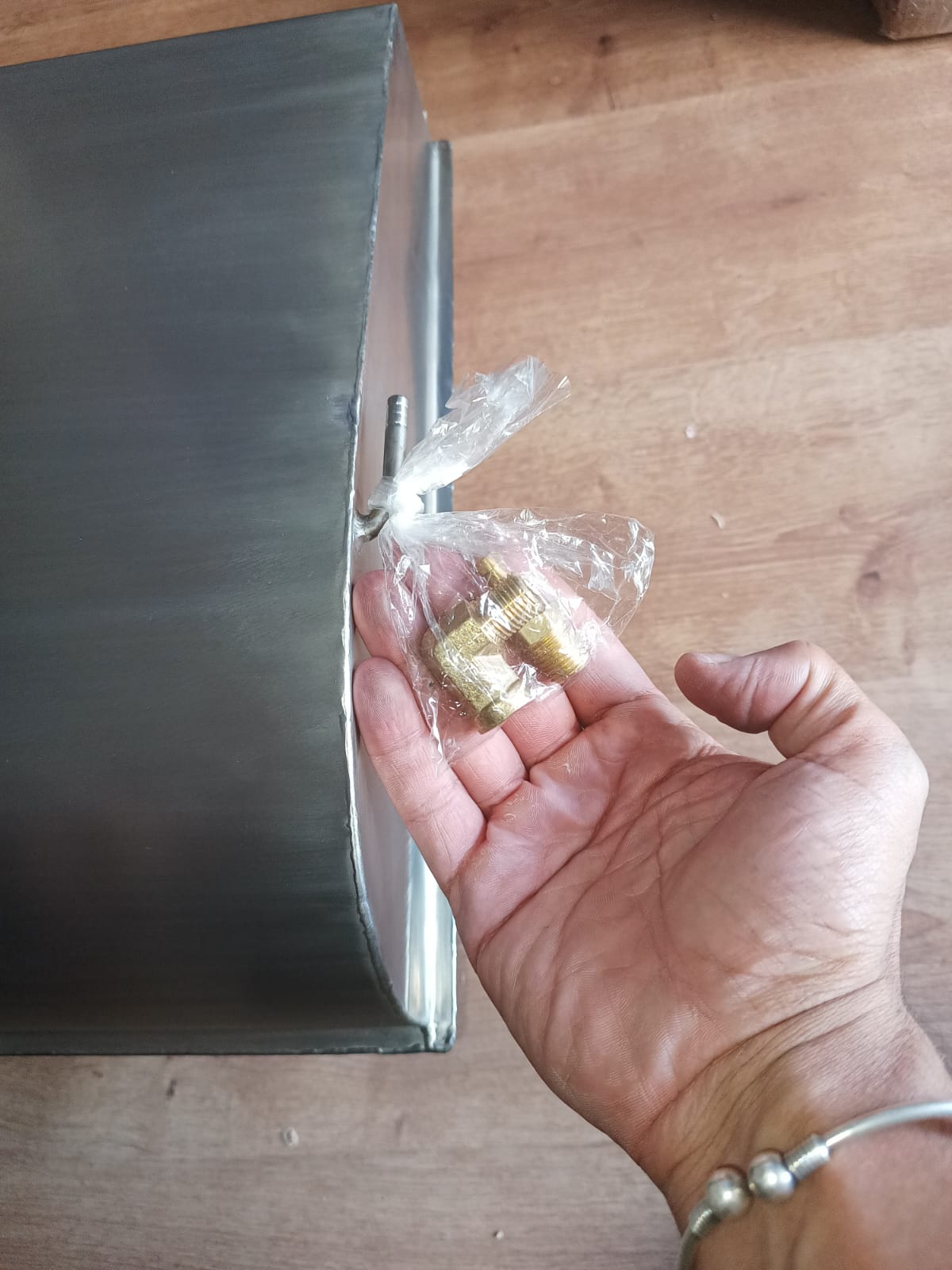

STAINLESS TANK BEETLE 45 L 61 to 77 MADE ENTIRELY IN AISI 304 TYPE STAINLESS STEEL PLATE IN PLATE 20 (1mm thickness), WITH BRUSHED FINISH THERE IS NO NEED FOR ADAPTATION (PLUG END PLAY)..... THEREFORE, WE PUT A 1/4 NPT FEMALE THREAD ON THE FUEL FISH, WHICH YOU CAN CONNECT HOSES OF: 5/16” – 3/8” AND 1/2” inch, TO THE RESPECTIVE SPIG...

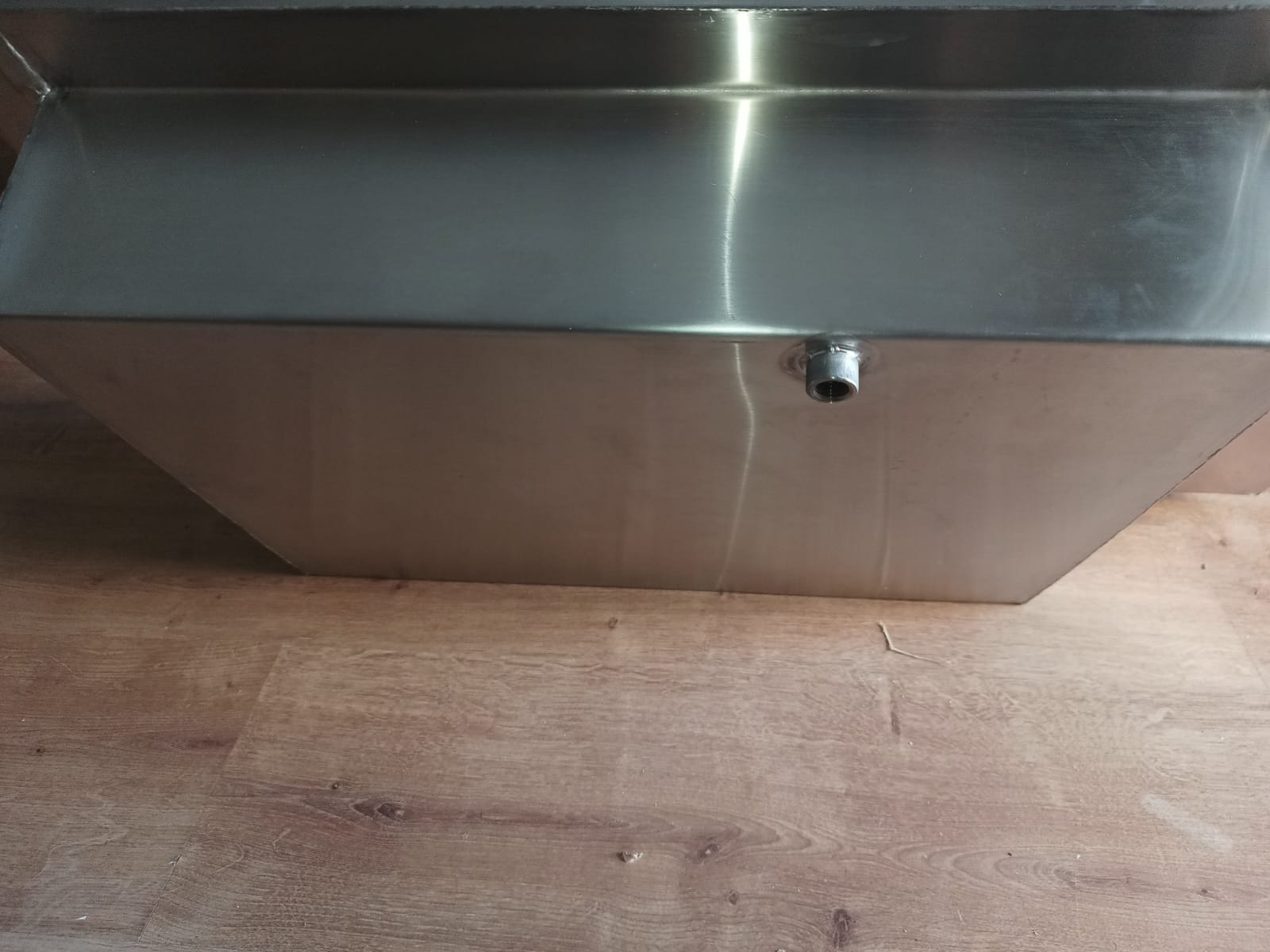

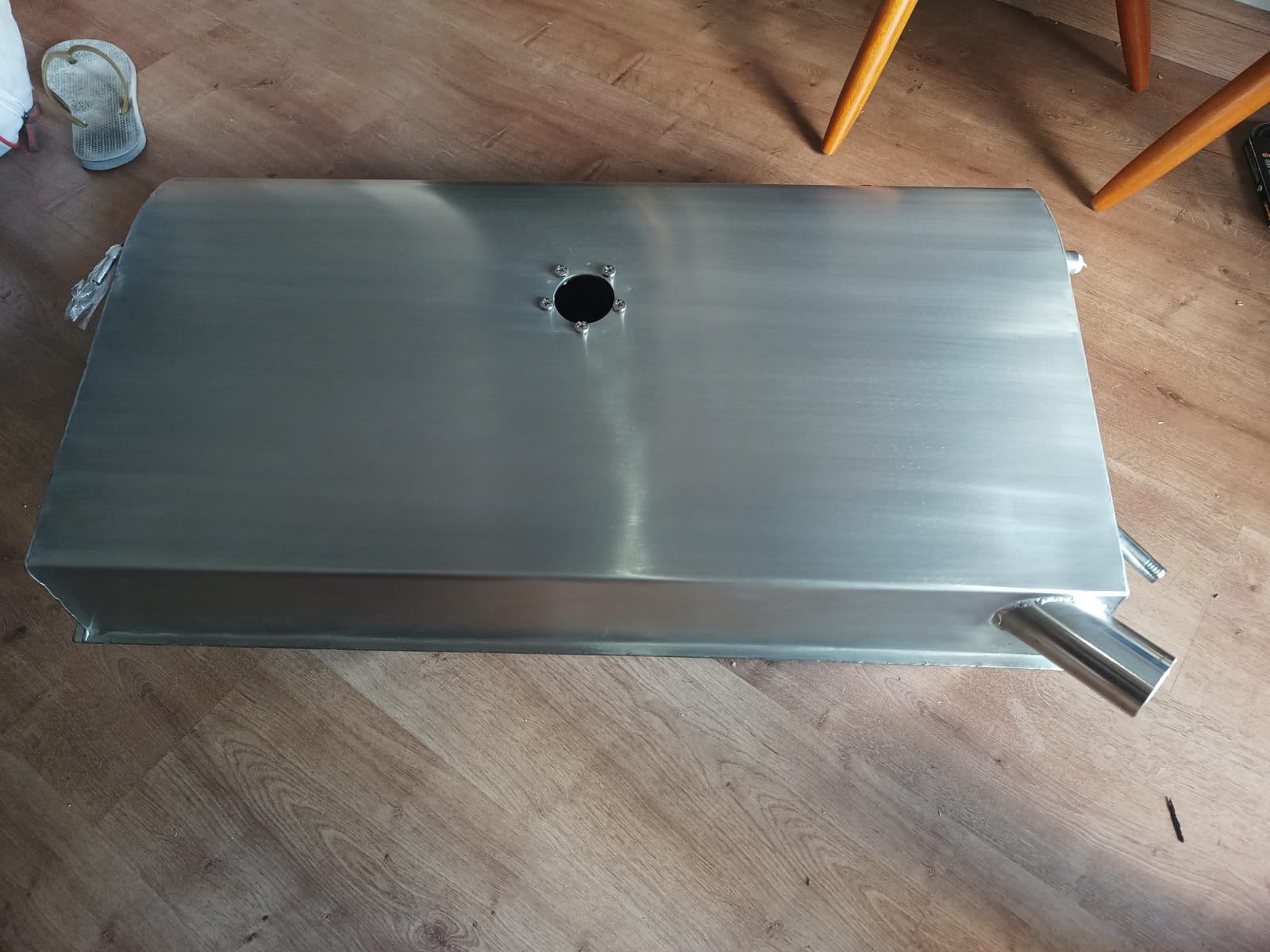

THIS ALSO HAPPENS ON THE PUMP RETURN, WHICH IS ON THE LEFT SIDE. YOU CAN ALSO USE AN TYPE “AN6 OR AN8” NIPLE THREAD ON THIS. (not included)  IN MORE SPECIFIC CASES, TO USE LARGER HOSE LINES, SUCH AS 5/8“ OR NIPLE AN10, WE CAN CHANGE (OPTIONAL) THE FISHER THREAD OR RETURN TO 3/8”NPT...(as per customer request) SIDE BREATH WITH 6MM CAPILLARY TUBE HOLE TYPE 5 FLOAT DRILLING ACCORDING TO ORIGINAL MODEL (Does not include buoy!!!! )
