Electric Air Conditioning 12V Beetle Beetle 1300,1302
Electric Air Conditioning 12V Beetle Beetle 1300,1302
Kit Composition:
01 - Electric Air Conditioning Compressor 12v or 24v Universal Adaptation
Compressor and Module for those who do not want to install a conventional compressor in their vehicle, ideal for new installations using an evaporator box with an average power of 15,000 to 20,000 btus. You don't need 2 batteries in the vehicle, just a 60 or 70 amp alternator.
Brand Name: Euro
Material type: aluminum alloy
Item Type: Air Conditioning Installation
Item weight: 8.5kg
Item width: 12 cm
Model Name: Euro Electric
New Year
External Test Certification: CC
Item height: 12 cm
Item length: 20cm
Rated speed: 12V: 1800rpm, 24V: 3000rpm
Compressor Style: Semi-enclosed Horizontal Scroll Compressor
Based on standard: GB/T 22068-2008 JB/T 12845-2016 GB/T 4706.17-2004
01 - Polaris Evaporator Box for Beetle
01 - Condenser + 2 Electric fans (Exclusive for the Beetle)
01 - Filter Dryer
01 - Pressure switch
08 - Connections
08 - Clips/Mugs
08 - Sealing rings, Oring
03 - Mts. Hose measuring 06 mm.
03 - Mts. Hose measuring 08 mm.
03 - Mts. Hose measuring 10 mm.
01 - PAG 150 Supercool Oil
DATASHEET

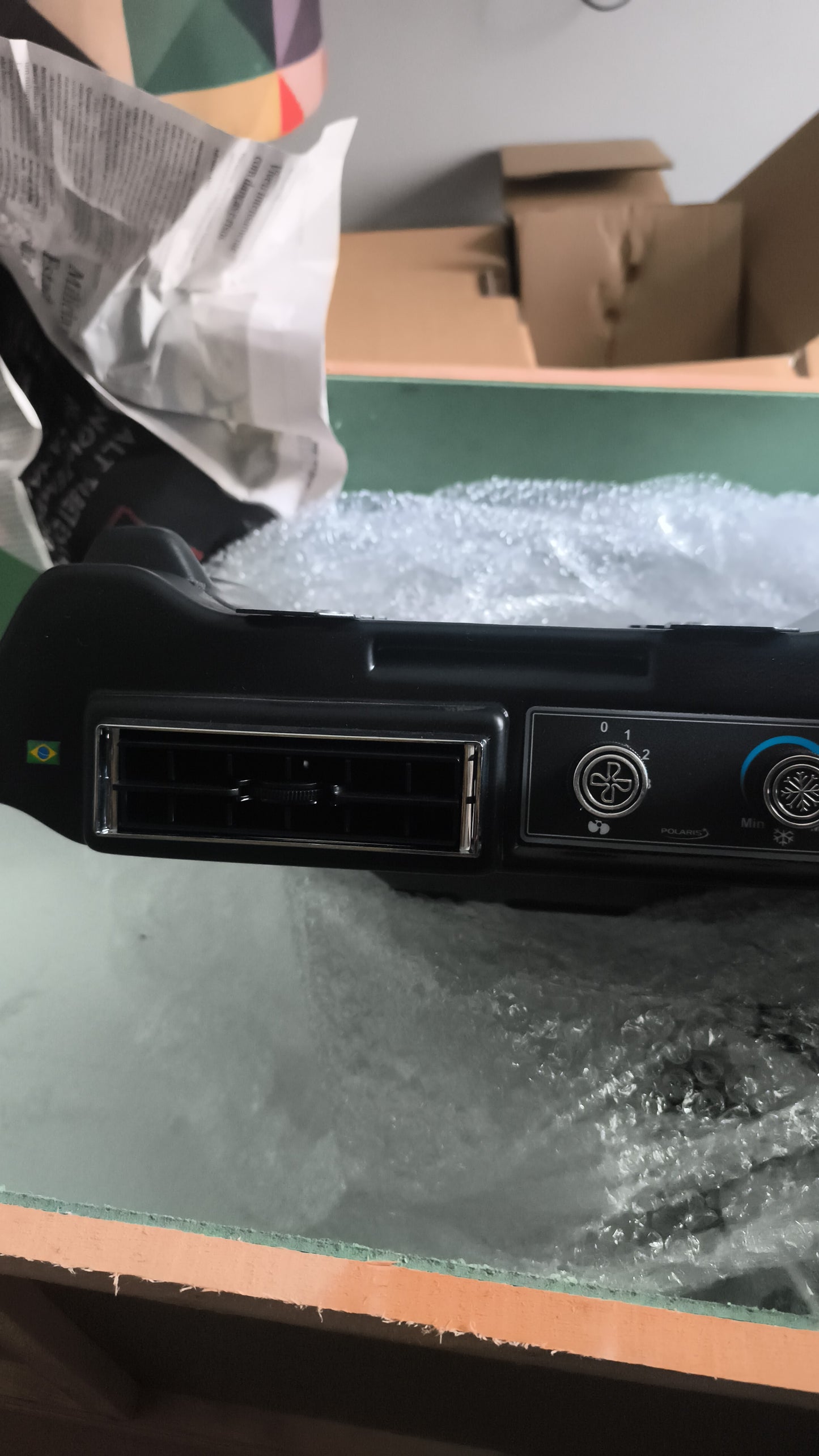

Name: Beetle Evaporator Box
Code: 50012
SKU: 20
Origin: Brazil
Material: Plastic
Painting: N/A
Black color
Voltage: 13V
Current: 8.9A
Flow: 547 m3/h
Power: 115W
Approx Capacity: 15,000 Btus
Dimensions: L: 100 cm; H:12 cm; L: 40cm
Net Weight: 5.5 kg
Packaging Dimensions: L: 105 cm; A: 25cm; L 50 cm
Gross Weight: 13 kg
Characteristics:
• Original pattern;
• Vintage Aesthetics;
• High quality finish;
• Easy installation and maintenance
Connections: Expansion Valve: 1 Liquid Male; Evaporator: 1 Male Suction
Expansion Valve: Universal 1 Capillary Type
Evaporator: Aluminum Coil Type; Measurements: L: 32 x H 10 cm x W: 8 cm
Fan Motor: IMOBRÁS 101122312
Control Panel: Plastic Buttons; Chrome Finish; Speed Selector 3 Positions; Adjustable Thermostat
Diffusers: 4; Chrome Finish
Fixing Brackets: 5 Front and 2 Central
Application: Beetle
