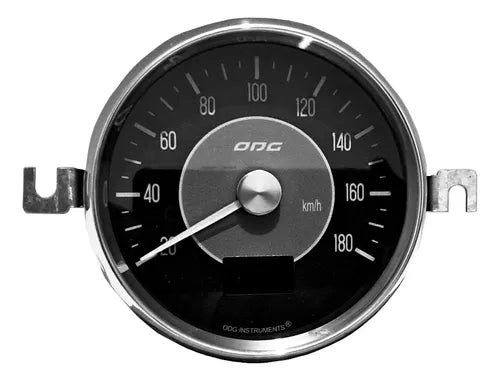

Speedometer 100mm Multifunctional Panel 4x1 Beetle VW ARCOOLED Hot Retro

The Hot Retro line speedometer is a multifunctional instrument, in addition to the speed indication functions, total and partial hydrometers, it also has an engine temperature indicator, fuel level indicator and a signal with 6 indicators.

They have a translucent panel with white lighting and a pointer with red lighting.

It is the most complete instrument in its category, integrating 4 instruments in 1.
Using a single instrument, it is possible to have the minimum information necessary for the vehicle to function properly.

ITS FEATURES IN DETAIL:

SPEEDOMETER
Fully configurable, it can work with any gear ratio and tire outer diameter, just install a speed sensor (not included). Once configured, the speed indication is perfect.
Total and partial hydrometers on the display, switchable. An initial KM value can be set for the start of the total odometer. Very useful function to maintain the vehicle's original KM.

ENGINE TEMPERATURE INDICATOR
With numerical indication and graphic bar on the display, configured for the temperature sensor (not included) model MTE4053 / ODG 052.0.0.0.2

FUEL LEVEL INDICATOR
With graphic indication on the display, programmable for any buoy. Programming is easy and can be done in two ways, either by informing the resistance values ​​for empty, half and full tanks, or by topping up the fuel in the tank. In addition to the programming option, it is also possible to choose between one of the 4 pre-programmed buoys.

SIGNAL
It has 6 indicators that cover the vehicle's most important signs.

LIGHTING
In white, it has lighting brightness control and DIMMER function. This control allows you to adjust the brightness intensity for perfect viewing, without tiring your eyes.
A special output allows you to control the brightness of instruments on the same line,

MASTER DIMMER function.

Technical characteristics:
- Operating voltage from 12 to 24 VDC
- 100mm diameter
- Speed ​​scale from 0 to 180 km/h
- Engine temperature indicator with option for 2 sensors (not included)
- Fuel level indicator with 4 pre-programmed floats and adjustable float option
- Switchable total and partial water meters
- Programmable for any gear ratio (requires sensor)
- Signal with 6 indicators
- Easy configuration of parameters, through the display and the accompanying keyboard

Requirements - Items not included
* SPEEDOMETER: A *Hall type speed sensor, normally with 3 wires, which can be connected directly, or an *Inductive type sensor, which normally has 2 wires, in which case the use of the CSI Inductive Sensor Conditioner is necessary. 1

* ENGINE TEMPERATURE INDICATOR: A temperature sensor model MTE4053 (ODG code 052.0.0.0.2) or another model with the same resistance/temperature curve

* FUEL LEVEL INDICATOR: A level/float sensor with a maximum resistance of 1K Ohms
